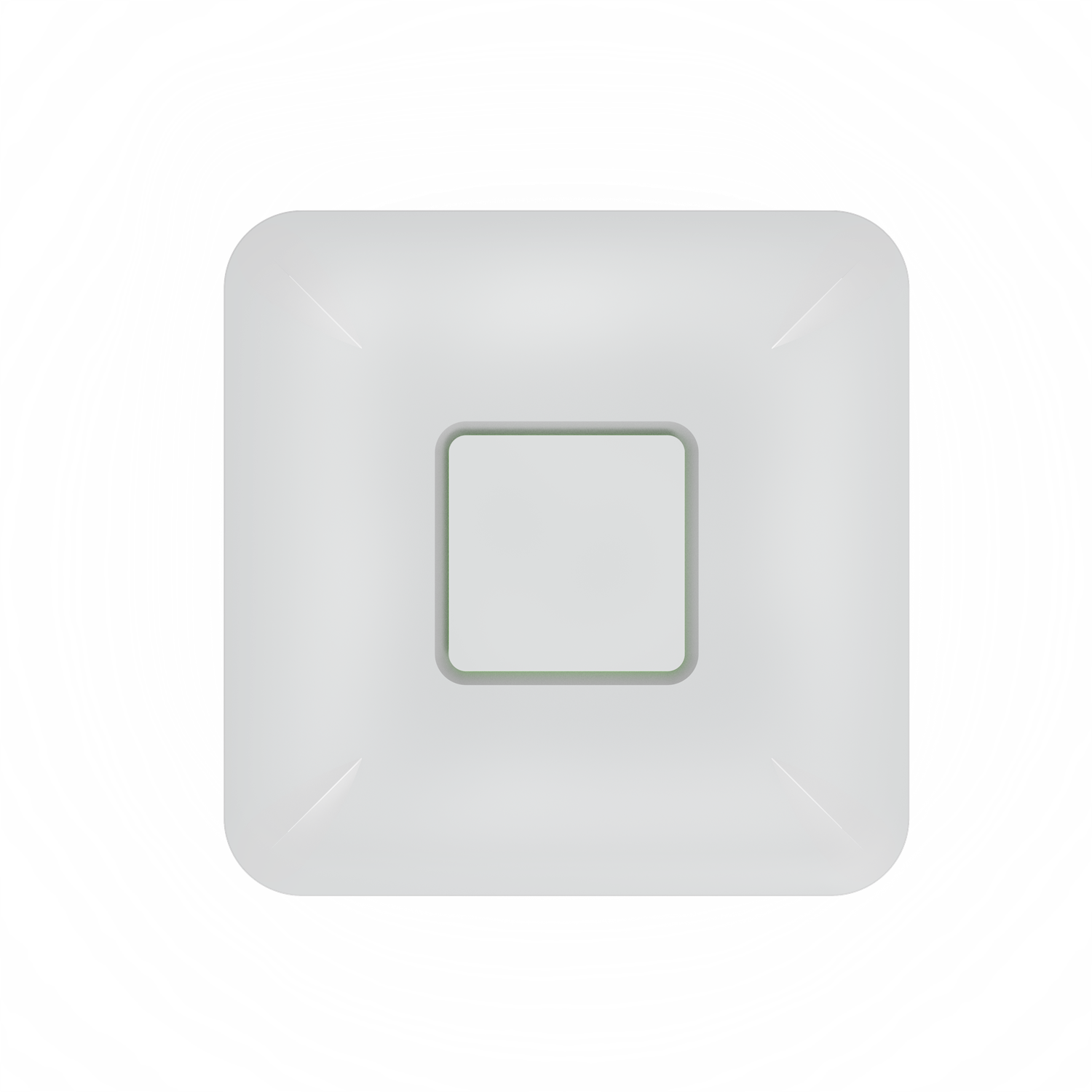

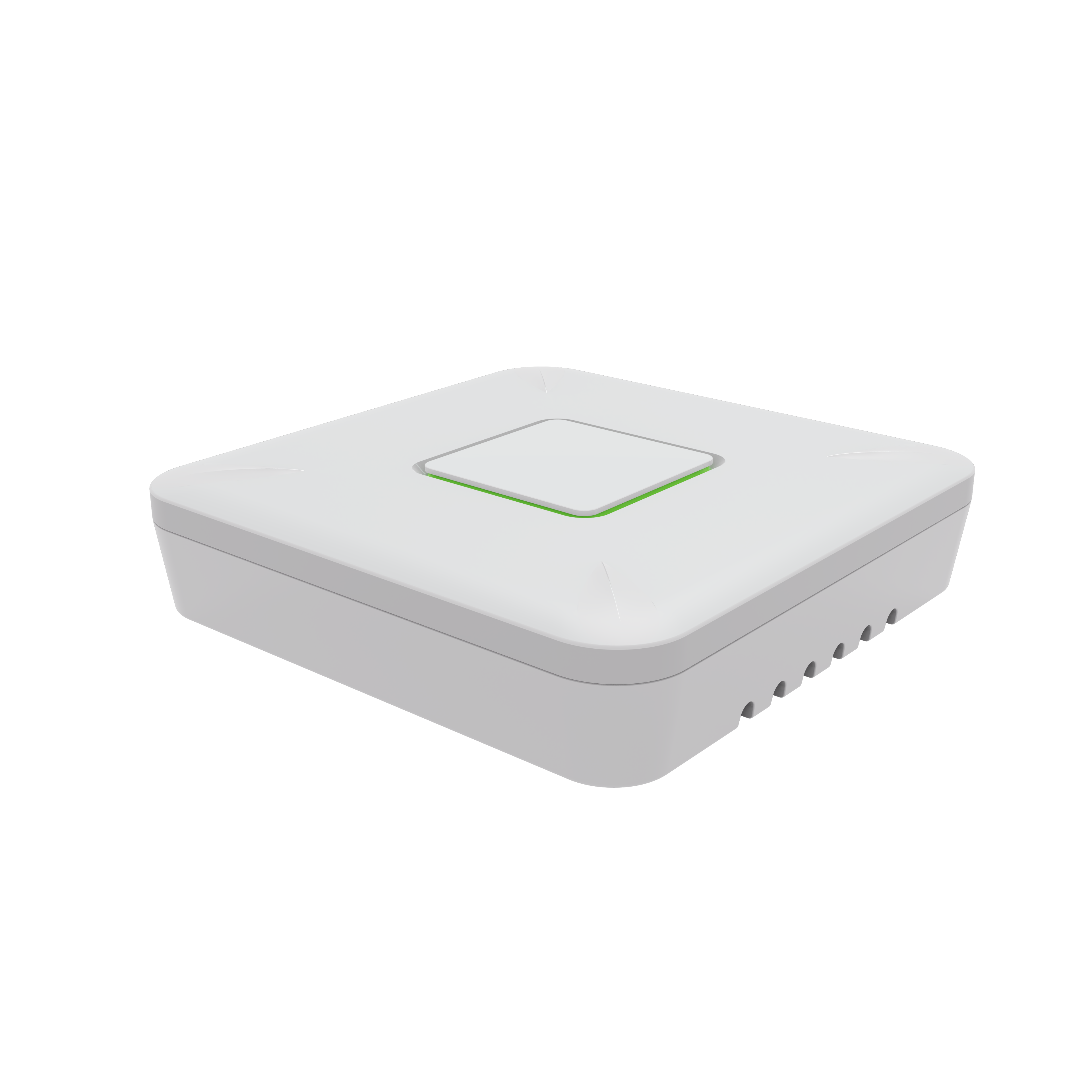

Intelligent Wireless Conference Host
UN40M



Adopting all-digital wireless audio codec technology, the signal's anti-interference ability is improved, and the audio signal is stable and accurately transmitted and received;

The audio data sampling frequency is 96KHz, the delay is less than 5ms, the sound quality is strong, clear and transparent;

Digital encryption combined with ID function pairing technology encrypts the audio signal to prevent eavesdropping and unauthorized access;

3-level transmission power setting, the transmission power can be set according to the requirements of the on-site wireless environment and the different transmission and receiving distances to ensure the stable and correct transmission and reception of the wireless system;

By setting the same wireless channel on the microphone, the system microphone can be added at any time without complex settings such as frequency matching;

Adopting small program wireless Internet of Things control and management, convenient and efficient, without installing APP applications;

Supporting AOIP network protocol, convenient for audio signal interconnection and expansion;

POE network power supply, integrated communication and power transmission technology, conventional single-port 15W network port can work normally without POE+;

A single conference host can realize independent control and merging of 4 conference rooms, and 4-way AOIP partition output can also be 4-way analog synchronous output;

With the digital network fusion conference system host, wired and wireless fusion can be realized to manage a set of conference systems, creating a seamless connection network for wired and wireless devices;

Analog backup output, digital and analog dual backup of audio signals, to deal with various complex sudden failures;

The system supports dual power supply redundancy technology to ensure reliable system operation;

Can cooperate with network central control to realize camera tracking;

Has 5 speaking modes: normal mode, first-in-first-out mode, free mode, application mode, voice wake-up mode;

The number of microphones supported is 1-4, and the system can carry up to 128 microphones;

A variety of installation methods, wall-mounted, ceiling-mounted, floor-standing bracket support, etc., from flexible conference rooms to historical ancient buildings, no matter where the meeting is, it can adapt to the establishment;

The system deployment is fast and simple, one network cable solves power supply and signal transmission, and the deployment is completed in a few minutes, so that participants focus on the meeting itself, not the equipment.



Effective working radius

 30 meters

Sensitivity

 When the offset is equal to 25KHz and the input is 6dBv, S/N>60dB

Frequency width

 30MHz

Maximum offset

 ±45KHz

Comprehensive signal-to-noise ratio S/N

 >105dB

Comprehensive T.H.D

 <0.7%@1KHz

Comprehensive frequency response

 45Hz-18KHz±1dB

Power input

 POE/DC12V 1.5A

Maximum power consumption

 10W

Sampling rate

 96K

AOIP

 4 channels, plug and play, automatic device discovery

POE standard

 IEEE 802.3af, IEEE 802.3at

POE

 100BASE-T:Category 3, 4, 5 unshielded twisted pair (≤100 meters). 100BASE-TX:Category 5 and above unshielded twisted pair (≤100 meters)

Weight

 800G

Specifications

 220*220mm

Control method

 WeChat applet, PC

Control connection method

 Bluetooth

Bluetooth effective distance

 ≤15 meters
