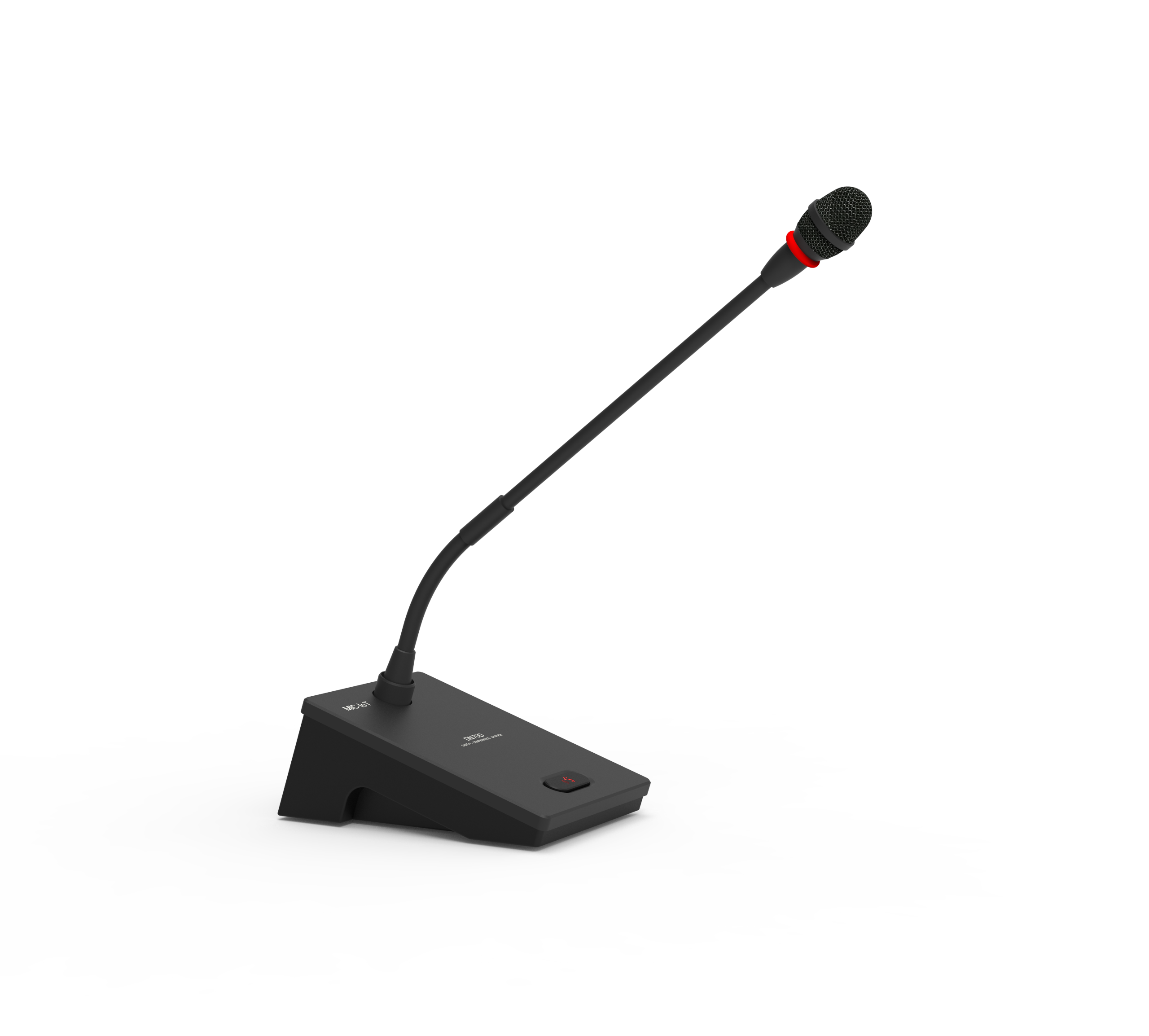

Digital Wired Chairman/Delegate Unit
DN72C/D

●It uses fully digital conferencing technology and conforms to IEC60914 international standard;

●The exquisite and minimalist structure design highlights the modern atmosphere and conforms to mythology;

●Special electret condenser dual microphone core design, clear and bright sound quality, high sensitivity;

●Full digital audio technology with built-in high-performance CPU for faster processing speed and better sound quality;

●Ring handheld connection technology, failure or replacement of one microphone will not affect the normal operation of other microphones in the system, making the system more reliable;

●Support line "hot plugging", no need to power off during the meeting, can add microphone access to the system at any time;

●The chairman unit has the priority function of full control of the meeting order, and the connection position is not restricted;

●The chairman unit can agree to turn on the microphone on behalf of the unit by pressing the function button briefly in the apply mode;

●The chairman unit can turn off all delegate microphones by pressing a function button in conference mode. If there is a delegate unit waiting to be turned on, it will be turned on immediately;

●The delegate unit can be set as a VIP unit, and the VIP unit is not limited by the maximum number of openings;

●With the camera tracking host, the camera can be automatically tracked using computer presets;

●Four modes of speech: Normal mode, FIFO mode, Free mode, and Apply mode;

●Two-color LED indicator, green for speech;

●With check-in function, the host computer initiates and views check-in status;

●Unit comes with 1.8 meters of conference-specific 8-core cable, can be customized with analog output backup function;

●Built-in anti-cell phone interference microphone core for a solid connection and reliable durability;

●Independently adjust the microphone gain, can be adjusted on the microphone or computer management software, so that different volume speakers speak more smoothly;

●1 x Ø 3.5 mm stereo ears plug to connect to ears;

●The conference unit has a unique serial number, and the conference system can manually assign IDs to the conference units.



Power

DC24V host power supply

Connection

Aviation 8P special cable

Power consumption

3W

Polar Pattern

Cardioid

Type

Condenser Microphone

Distortion

<1%

Frequency Response

40Hz – 20KHz

Sensitivity

-32dBV

Dimension

Base:148*99*60mm  Pole length:380mm

Weight

655g
