MIC-IoT Conference Host Wall Control Screen
QK-20M
In order to facilitate
engineering installation, QK-20M uses a standard 86-box enclosure and a 4-inch
resistive touch screen for the control panel, and the installation method is
almost identical to that of an ordinary wall switch. Connects to the network
port (RS-485) of the AoIP conference system host via a standard network cable,

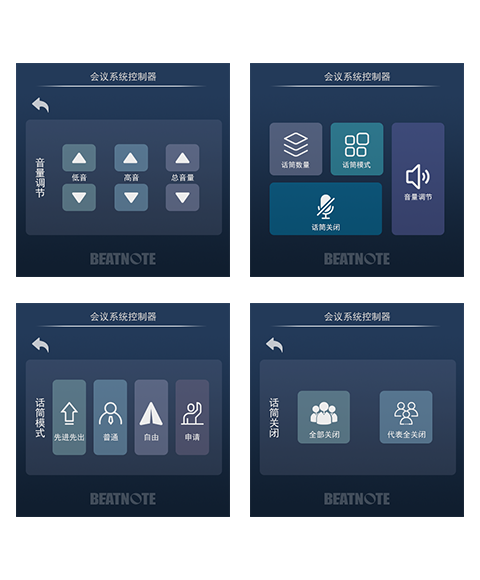

supporting functions such as microphone number, microphone mode, volume
control, and microphone off.
Core Processor | High-speed FPGA+Cortex-M3 core |
Screen size | 3.5 inch |
Resolution | 320×240 |
Color | 64K colors, 16-bit RGB |
Communication method | RS485 |
Touch | Resistive type |
Power consumption | With backlight on：170mA@5V, without backlight on：71mA@5V |
Dimension | W86mm×H86mm×D27mm |
Net weight | 90g |
