Having worked in the conference systems industry for over a decade, I often hear this phrase: "This system works perfectly fine normally, and there have never been any problems." "Never having any problems" does not mean "the system is rock solid," but rather it may mean "the failure just hasn't happened yet."

In modern business meetings, sound is key. When a CEO is speaking at a board meeting, during a crucial multinational video conference, or delivering a keynote address at a large forum, even a brief interruption in sound can result not only in a loss of information but also in an embarrassing and unprofessional corporate image.

Today, as a technology sharer, I would like to have an in-depth discussion with you about an extremely critical yet often overlooked aspect of meeting systems—audio source backup architecture.

Many project managers without a technical background may wonder: Why spend double or even more money to buy the same equipment and run the same cables? Wouldn't a high-quality set of equipment be enough?

The truth is: the occurrence of failure is a matter of probability, not a matter of whether it will happen.

Hardware aging: Microphone jacks, processor chips, switch ports—any of these components has a lifespan and may suddenly fail at any time.

Network fluctuations: Modern digital audio systems are highly dependent on networks. A simple network broadcast storm or the unauthorized access of a switch can cause Dante or AES67 audio packet loss or interruption.

Human error: A cleaner accidentally broke the power cord of the core switch, or an IT staff member misconfigured the VLAN... These are all real-life scenarios that have caused immense distress.

Since malfunctions are unavoidable, all we can do is minimize their impact. That's the whole point of having an "audio source backup."

Below, I will start with the most basic simulated backup and show you AIMICIOT's four backup solutions.

Solution 1: Dual-simulation dual-link backup

This is the most traditional and robust backup method. It is especially suitable for scenarios where there are concerns about digital network technology, or where extremely high reliability and zero dependence on audio networks are required. Its core idea is to establish two completely independent analog audio paths that do not intersect from beginning to end.

Solution topology diagram:

Explanation: As shown in the diagram above, the microphone has dual outputs , simultaneously inputting to two completely independent network audio processors. This means that from the microphone itself to the processors, amplifiers, and even the speaker paths, everything is physically separate – essentially two separate systems. Even if the upper processor completely loses power, the entire system below can still provide perfect sound.

Advantages: Physical-level isolation, rock-solid stability, does not rely on any IT network technology, and troubleshooting is extremely simple .

Disadvantages: The number of devices and cabling costs are doubled, the system is bulky, and it lacks flexibility.

Solution 2: AES67/Dante simulated dual-link backup

(AES67/Dante) networks while maintaining the high reliability of analog links . It is suitable for upgrading and backing up existing digital audio systems, or for high-end conference rooms seeking cost-effectiveness.

The core idea is that the microphone has both analog and digital (AES67/Dante) outputs, with the two signals entering the processor separately.

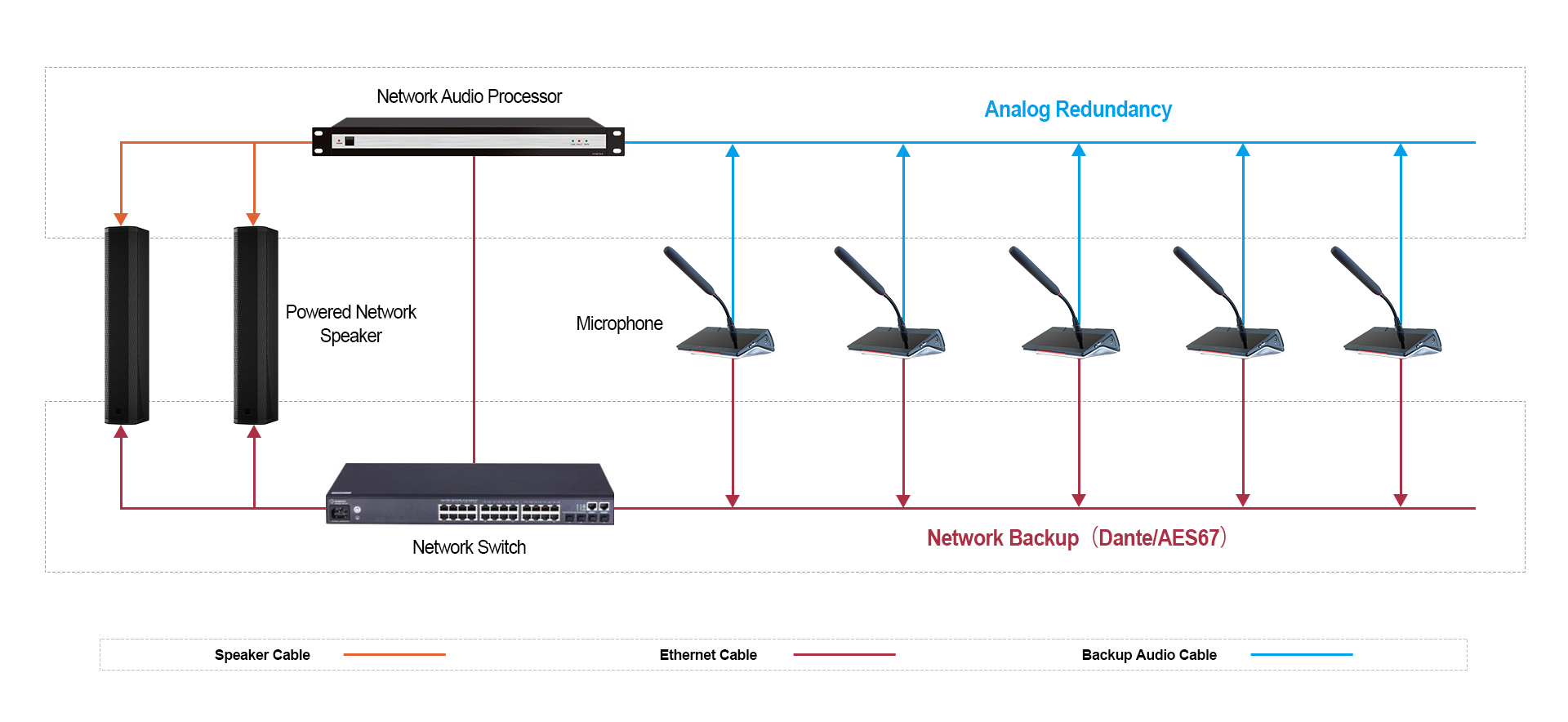

Solution topology diagram:

Interpretation: Observing topology diagram 2, we can clearly see the "dual-track system":

the switch via a network cable (Dante/AES67).

Analog Backup: The microphone simultaneously outputs an analog audio cable (light blue) to the audio processor .

The system defaults to using Dante's high-quality, multi-channel signal. Upon detecting a Dante network failure, packet loss, or host malfunction, the processor automatically and instantly switches to analog input. While functionality may be limited (e.g., advanced distributed control is not possible), it ensures audio continuity, allowing the meeting to continue.

Advantages: It combines the flexibility of digital with the high reliability of analog, and is more cost-effective than fully analog, making it suitable for large systems.

Disadvantages: It still requires the deployment of a large number of physical simulation cables, making the wiring complex.

Solution 3: Digital Conferencing System and Analog Backup

When systems become fully digital and networked, the cumbersome nature of all-analog cabling forces us to rethink our approach. Solution 3 leverages the advanced features of the host computer to establish a redundant ring network. It is suitable for modern, intelligent, high-end conference rooms with limited cabling space.

The core idea is to use a host that supports ring network technology to form a physical loop.

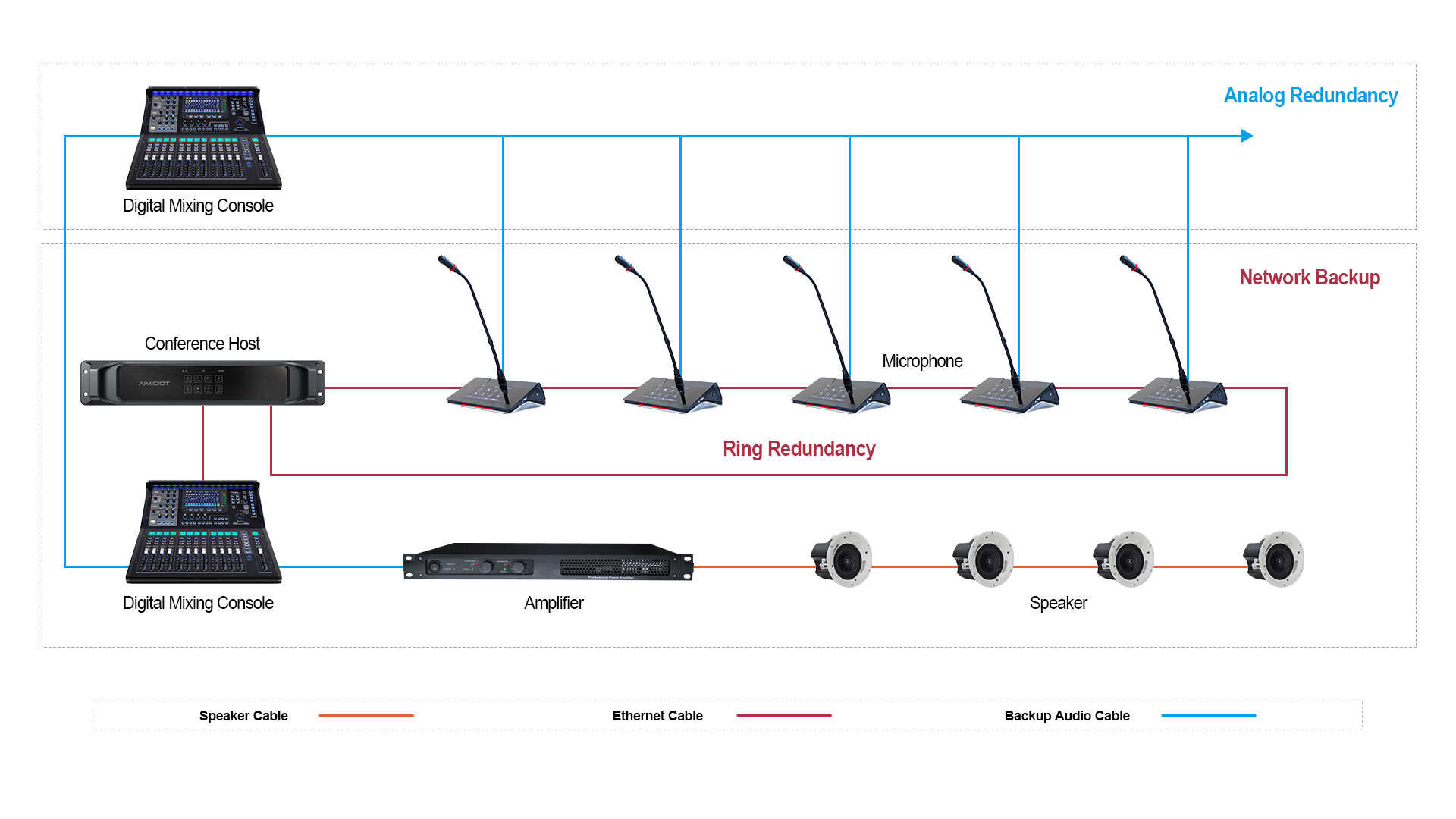

Solution topology diagram:

Interpretation: Topology diagram 3 illustrates an "elegant" daisy-chain digital solution. All microphones are connected to the same host , forming a physical network loop (Ring Redundancy). Simultaneously, each microphone retains an analog audio cable connected to the mixing console.

Under this architecture:

In traditional daisy-chain conferences, if a network cable breaks in the middle, all the microphones behind it become silent. But this system uses a "closed loop" (ring network redundancy). The network cable starts from the host, connects all the microphones in series, and then loops back to the host. This means that even if any microphone node fails , the signal can still be routed back from the other end . The breakpoint self-heals in seconds, and those in the meeting won't even notice it.

Dual- source input : The input of the mixing console simultaneously receives digital audio and analog audio from the microphone.

This is a more advanced form of "analog-to-digital" that leverages the network redundancy characteristics (ring network) of IT networks, reduces the physical dependence on analog input ports on the processor front end, and further optimizes cabling.

Advantages: Makes full use of IT technology, highly digitalized, with minimal cabling, while retaining physical backup, and extremely flexible.

Disadvantages: It places extremely high demands on the configuration of the network switch, and this solution cannot be used if the core processor itself fails.

Solution 4: Dual-machine hot backup and multiple backups

The three solutions above mostly address the backup of the "microphone-to-processor" path. But what if the core audio processor itself completely fails?

This is the problem that Solution 4 solves: dual-machine hot backup. This is standard equipment for the highest-level meeting systems, such as national conferences and multinational corporation board meetings.

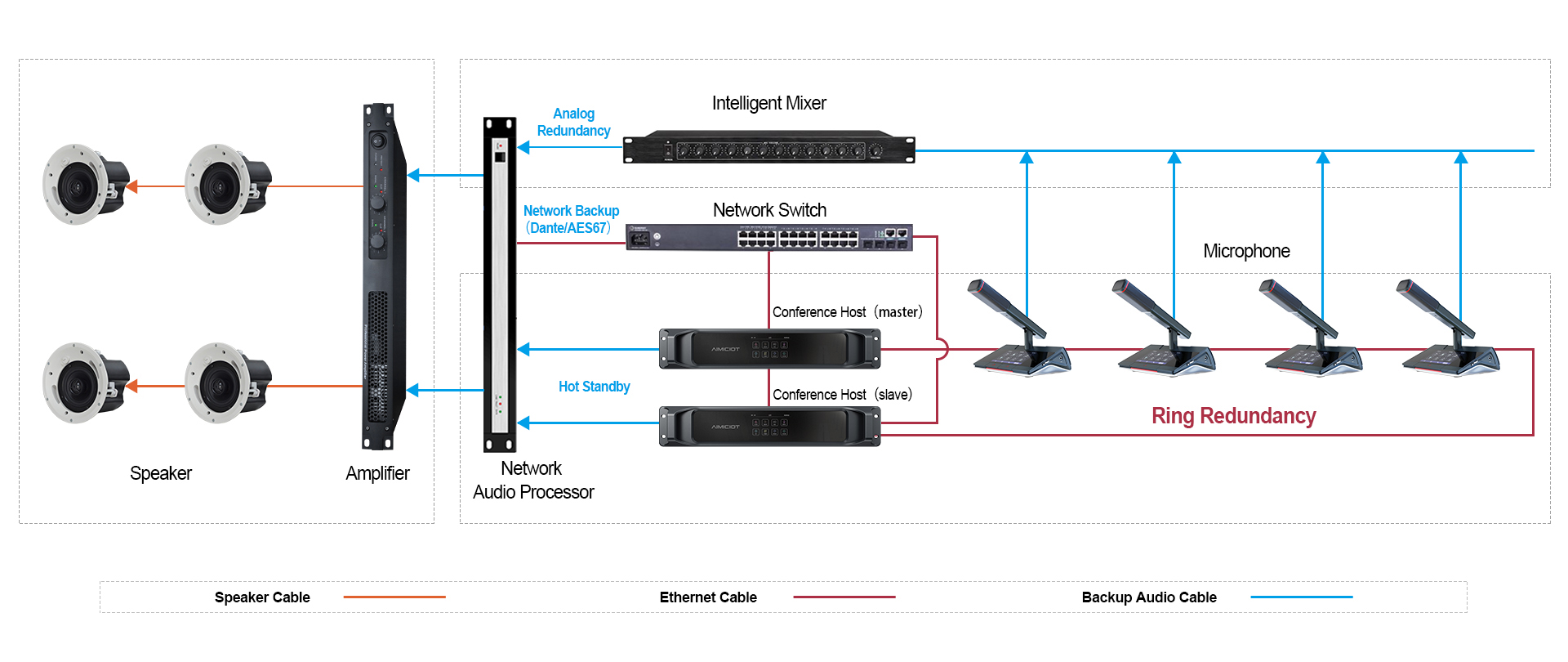

Solution topology diagram:

1. Main network digital link path: Microphone - Master conference host - Network switch - Audio processor - Power amplifier - Speaker.

Explanation: This is the digital core of the entire system. Sound captured on-site is digitally encoded via microphones and transmitted to the main conference host and network switch via standard network cables using the Dante/AES67 network audio protocol. This digital audio then goes to the core audio processor, and finally, is driven by the amplifier to the speakers. Under normal network conditions and with healthy equipment, this fully digital link is responsible for supporting the most perfect sound quality experience throughout the event .

2. Master-slave "dual-machine hot standby" link path: Master host (master) interconnects with slave host (slave) - audio processor.

Explanation: What if the master host suddenly loses power or crashes? Don't panic. The slave hosts are constantly synchronizing with the master host's status in real time, monitoring each other. If the master host fails , the slave hosts instantly take over all microphones. The signal goes directly to the processor via the downstream path, a seamless switch, and the meeting never needs to be paused.

3. Pure physical "analog backup " link path: Microphone analog output - Intelligent Mixer - Audio Processor.

Explanation: What if a catastrophic failure occurs on-site (such as a network storm affecting the entire server room, a burnt-out switch, or a complete shutdown of the master and slave hosts)? The answer is to bypass the network and the hosts. The microphone contains a hidden analog hardwired cable (light blue), which plugs directly into the intelligent mixer and then into the audio processor. As long as there is power and the cable is intact, even if the entire IT network fails, this "physical megaphone" will ensure that speech can still be heard!

In summary, the advantages include: providing triple core redundancy with network ring network + dual host + analog pass-through, maximizing reliability and achieving the highest error prevention standards for broadcast and national-level conferences.

Disadvantages: Extremely high cost, double the number of cables, and the logic configuration and debugging of the system in the later stages are extremely challenging for engineers.

How to choose?

As a professional with over a decade of experience in the industry, my advice is: there is no best backup, only the most suitable backup.

Small meeting room: If budget and space are limited, option 1 may be a safe choice.

Medium to large-scale intelligent conference systems: Option 2 or Option 3 offers the best balance between flexibility and reliability.

National/enterprise-level critical meeting rooms: With no expense spared in the pursuit of zero breakpoints, Option 4 is the only option.

At the initial stage of a project, it is essential to consult with a professional conference system integrator or design institute to clarify the system's importance level and budget for backups of core audio sources. Because compared to losses after a failure, upfront investment in backups not only demonstrates technical expertise but also safeguards the company's reputation.

The allure of audio technology often lies in hands-on demonstrations and technical exchanges. This year, InfoComm Asia 2026 will be held from July 15th to 17th at the Queen Sirikit National Convention Center (QSNCC) in Bangkok. My team and I will be there, showcasing our latest professional audio and video technologies.

If you happen to be in Bangkok, or have any ideas about the architecture of a high-reliability conferencing system, you are very welcome to visit our booth H52. We'll be demonstrating topologies, discussing industry trends, and exploring how to ensure uninterrupted audio for every critical meeting.

Looking forward to seeing you in Bangkok!
